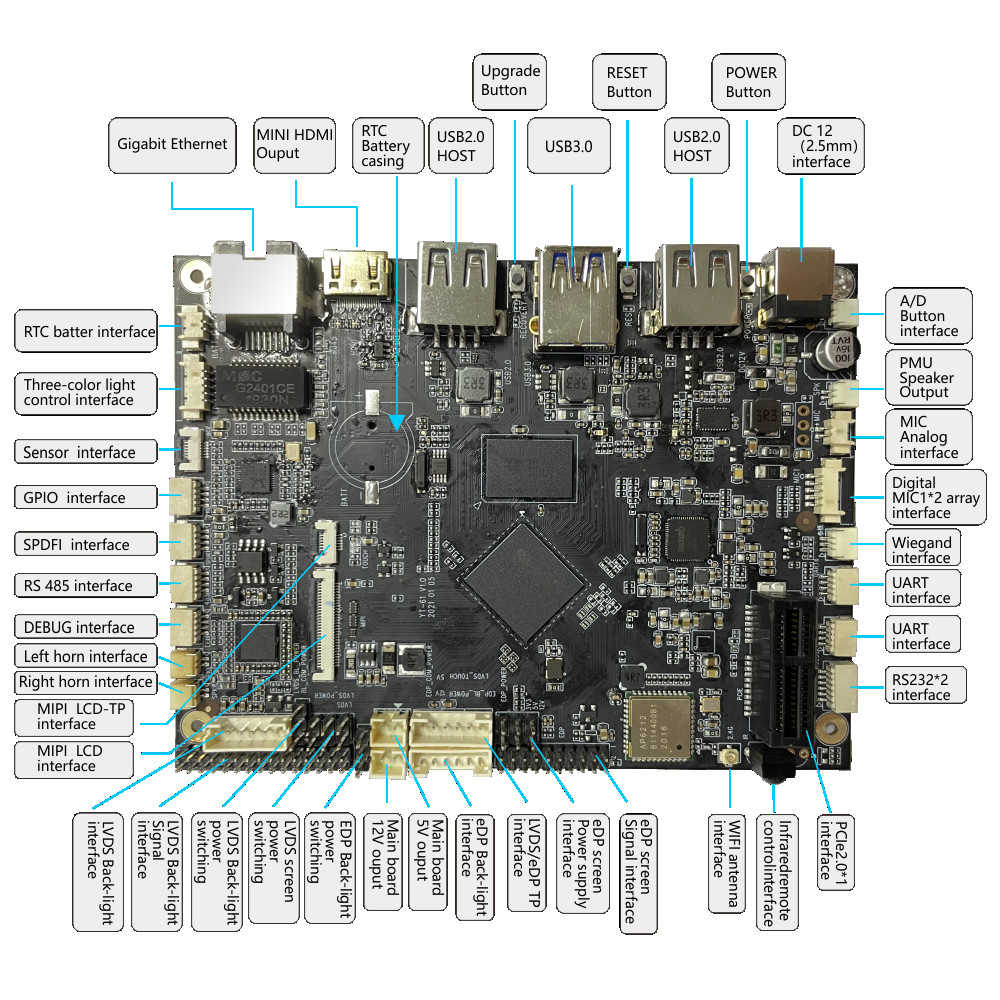

YT-61 RK3566 Cortex-A55 1.8GHZ Development Board built-in
independent NPU Support running Android 11 and Linux systems
YT-61 Characteristics:
* The size is 55mm*55mm, which guarantees the compact volume and
enough GPIO holes.
* Use RK's own RK809-5 PMU to ensure stable and reliable work at
the same time, and the cost is low enough;
* Support emmc of a variety of brands and capacities, the default
use of Samsung 16GB EMMC;
* Use single channel LPDDR4 design to support 2GB capacity by
default and 4GB capacity can be customized;
* Support power dormant and wake;
* Support android 11, Linux and other operating systems;
* Support Gigabit wired Ethernet;
* The product is stable and reliable;
| Video output type | 1-way MIPI-DSI,1-Way eDP |
| Display resolution | Video output0, up to 4096x2304@60Hz resolution
Video output1, up to 2048x1536@60Hz resolution
Support dual display with same source, the same screen direction
and max 1080P |
| Sound output | IIS/PCM interface, support recording and playback |
| Touch mode | Capacitive touch, also support USB or serial port to extend
resistive touch |
| Ethernet | Support Gigabit Ethernet |
| POE power supply | IEEE 802.3af/at-Compliant |
| TF CARD | SDIO output channel |
| SIM CARD | 1- way SIMCARD |
| Type-C | 1-way Type-C (support OTG) |
| Headphones, Microphones | Support 3.5mm headset and microphone |
| USB HOST | 2-way USB2.0 |
| USB OTG | 1-way OTG3.0,1-way OTG2.0 |
| UART TTL | 5-way serial port, support flow control serial port |
| UART 232 | 5-way serial port, support flow control serial port4-channel serial
port, support with flow control serial port (multiplexed with TTL) |
| Half 485 | 1-way 485 interface (use a group of serial ports when selecting) |
| PWM | 3-way PWM output |
| IIC | 7-way IIC output |
| SPI | 1-way SPI output |
| ADC | 2-way ADC output |
| Camera | 2-way MIPI output |
| DSI | 1-way MIPI output |
| LVDS | Dual LVDS output 1920*1080 |
| Edp | 1-way Edp output |
| HDMI | HDMI2.0,HD audio and video synchronous output |
| PCB dimensions | 120mm(L)*90mm(W) *20mm(H) |
Application: Vehicle-mounted tablet, truck tablet, advertising machine, mobile
payment, VR, ultra-high definition display screen and so on
YT-61 is a main board based on RK3566 from Rockchip, which is
independently developed, produced and sold by Shenzhen YECON
Technology Co., Ltd.
RK3566 is a general-purpose SoC designed for consumer applications.
CPU adopts 4-core A55 architecture processor, integrated G52
graphics processor, built-in independent NPU, running Android 11
and Linux systems. RK3566 is mainly tailored for consumer products
such as tablet computers, audio boxes with screens, Android
laptops, dictionary pens, and industry products such as face
payment POS machines, e-books, cloud terminals, video phones, and
NAS storage.
RK3566 has a built-in NPU, with calculation power 0.8TOPS, 512 INT8
MAC 128 INT16/FP16/BFP16 Mac Up to 800MHz. It also provides
developers with a simple and easy-to-use model conversion tool
RKNN-Toolkit, which supports one-click transformation of major
architectural models such as Caffe / TensorFlow / TF-Lite / ONNX /
PyTorch / Keras / Darkne .
RK3566 has a wealth of interface expansion capabilities. It
supports a variety of peripheral high-speed interfaces, support
PCIE2.1 1X1Lane, meet 4G/5G, WIFI6, NPU and other expansion needs,
support up to 4 USB ports, 1xUSB3.0/USB2.0 HOST + 2xUSB2.0 HOST +
1xUSB2.0 OTG. and it also support gigabit Ethernet port,
multi-camera support MIPI CSI 4Lanes, Can be split into 2x2Lanes
two groups for independent use. Support 16bitDVP interface, support
BT1120 input, support VC mode. RK3566 has a complete display
interface, support HDMI 2.0 output, support dual-channel MIPI DSI,
can drive 2.5K LCD screen, support EINK, can directly drive ink
screen, support EDP. RK3566 supports 10x UART, 6x I2C, 16x PWM, 4x
SPI, and 4xADC with ample peripheral interfaces.
