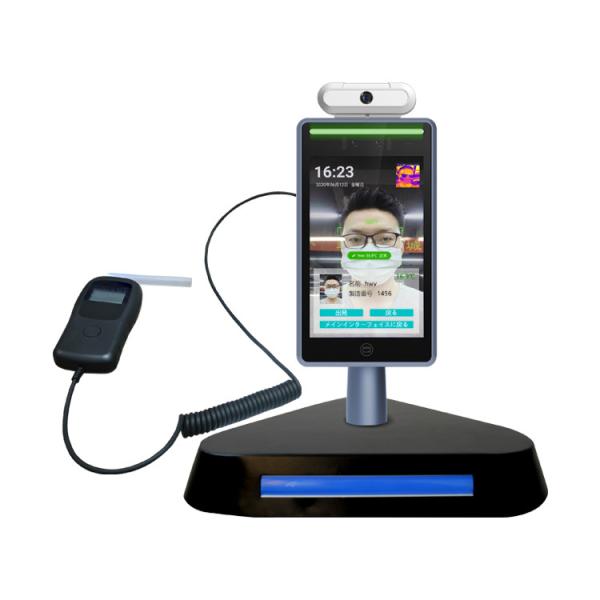

TR08D Face Recognition Multi-Functional Comprehensive Alcohol
Detection Terminal Equipment
April 1st 2022, Japan implemented the newly revised Road Traffic
Law, in which Article 9-10Added regulations:
Responsibilities of Safe Driving Managers
(A safe driving manager is defined as: Own 1 motor vehicles with
seats more than 11, or more than one person or total 5 of other
types of motor vehicles unit)
•Requires passing before and after daily drivingVisual observation
and other methods (including observing the complexion, whether
there is alcohol in breathing, whether the speech is normal,
etc.)Check the driver for signs of drinking.
•Record above confirmation keep 1 year. The contents of the record
include: confirmer name, driver name, license plate number,
confirmation time, confirmation method, whether there is any sign
of drinking, and others.
At the same time, the police explained: In the case of inconvenient
manual confirmation, the use of alcohol detectors, cameras and
monitoring equipment to confirm the driver's status can also be
used.
at the same time,from Oct 1st, moreover, the above-mentioned units
are required Use alcohol testing equipment Check the driver.
Specification Of Face Recognition Machines
| Device shell | All aluminum alloy and other materials |
| operating system | Linux |
| processor | RK1109 |
| NPU | support, example1.0Tops |
| Memory | Standard: memory1GB LPDDR3 storage: 8GBEMMC |
| touch screen | 8"Multi-point capacitive touch screen |
| display | 8"Resolution800*1280 |
| Alcohol mod | Alcohol sensor | Using the most advanced fuel cell electrochemical sensor |
| Blow way | V Type bell mouth non-contact blowing/Disposable blowpipe/straw |
| Response time | <3S |
| Recovery Time | <1S |
| scope of test | 0.0mg/L~2mg/L(BrAC) |
| Allowable error | C<0.40mg/L,±0.02mg/L,0.40mg/Labove±5% |
| Use time | 2 years or20000 times, need to be calibrated regularly |
| temperature measurement | temperature sensor | Melmann HPTA32X32 5.0 |
| Resolution | 32*32Pixel |
| Temperature measurement accuracy | ±0.3°C |
| interface | communication | 2.5/5GHzDual frequencyWIFI 802.11 a/b/g/n,RJ45 |
| Bluetooth | V4.0 |
| Data interface | USB2.0*1 |
| sound | trumpet1.5*1 |
| RS485 | RS485*1 |
| Wei and interface | support |
| powered by | 12V/2A,supportDCExtension cord,0.5Square line≥100Meter |
| working environment | Operating temperature | -10℃ ~ +60℃ | ESD | ±4kV touch,±8kV Air |
| Working humidity | 20%-95%Does not condense | surge | support |
| storage temperature | -20℃ ~ +70℃ | harmonic | support |
| Machine power consumption | Max <18w | non-stop work | 7*24 |
Major function:
| face recognition | Combined with high-performance hardware, it is possible to to
realize Face base library of more than 5000 for fast recognition |
| Liveness detection | RGB+IR Binocular wide dynamic hardware, combined with the top AI
Algorithms that reject fake attacks |
| human light perception | combineTOF Human body induction sensor, which can realize human
body detection and scene adjustment. |
| interactive prompt | Provides programmable control red, white, green three color prompts |
| Alcohol testing | Provide electrochemical alcohol detection module, fast response and
accurate test, to meet the application of different scenarios |
| Body temperature detection | The world's leading infrared temperature measurement module,
resolution32*32, Accuracy﹢0.3°C |
Application scenarios
| school bus | courier company |
| Real Estate Agents | travel agency |
| credit institution | gas company |
Features:
1. The alcohol sensor is packaged independently for easy
replacement;
2. Adopt high-performance and reliable electrochemical (fuel cell)
sensor;
3, Adopt compact gas circuit design and high-precision sampling
system to ensure fast and stable measurement;
4, Non-contact blowing detection, easy to use, fast detection speed,
results in 1 second;
5,Ensure hygienic use, disinfect and sterilize the blowing detection
part to avoid cross-infection.
6, Support employee card, face identification and comparison,
snapshot of facial images when blowing air, secondary comparison of
face photos to identify anti-cheating and substitute inspections,
attendance check-in, data report export, etc.;
7, abnormal data such as drinking, online notification of drunk
status, real-time push.
8, Support the push of safety instructions according to the
information of each fleet, pre-job safety education, attendance
check-in and check-out management.
9. License plate information entry, management, and one-to-one
binding with the driver;
10. Supporting independent background management software
applications to view data in real time;
Target audience (Take Japan as example)
The amendment to the law in Japan mainly expands the scope of
objects that are obliged to test for alcohol, including all
collective and units (including rentals) of the following vehicles:
•Green card operating vehicles. means all Paid Vehicles used for
transport, such as taxis and transport company trucks (has been
implemented since 2011)
•Capacity with more than 11 seats vehicles. No distinction is made
between license plate types. (This new range)
•More than 5 non-operating vehicles of white/Yellow plate. that is
owned by the company, not Paid Vehicles used for transportation,
including the company's own use of passengers/delivery vehicle. as
a company/hostel/The entertainment venues are free to pick up and
drop off passenger vehicles, and construction units use trucks for
their own use. (This new range)
