    YT-12 PCBA Smart Screen Display Machine Rockchip RK3399 Board

    Ask Lasest Price
    Brand Name : Rockchip
    Model Number : YT-12
    Price : US$55-US$65
    Payment Terms : T/T
    Supply Ability : 1000PCS/WEEK
    Delivery Time : 20 Work days
    • Product Details
    • Company Profile

    YT-12 PCBA Smart Screen Display Machine Rockchip RK3399 Board

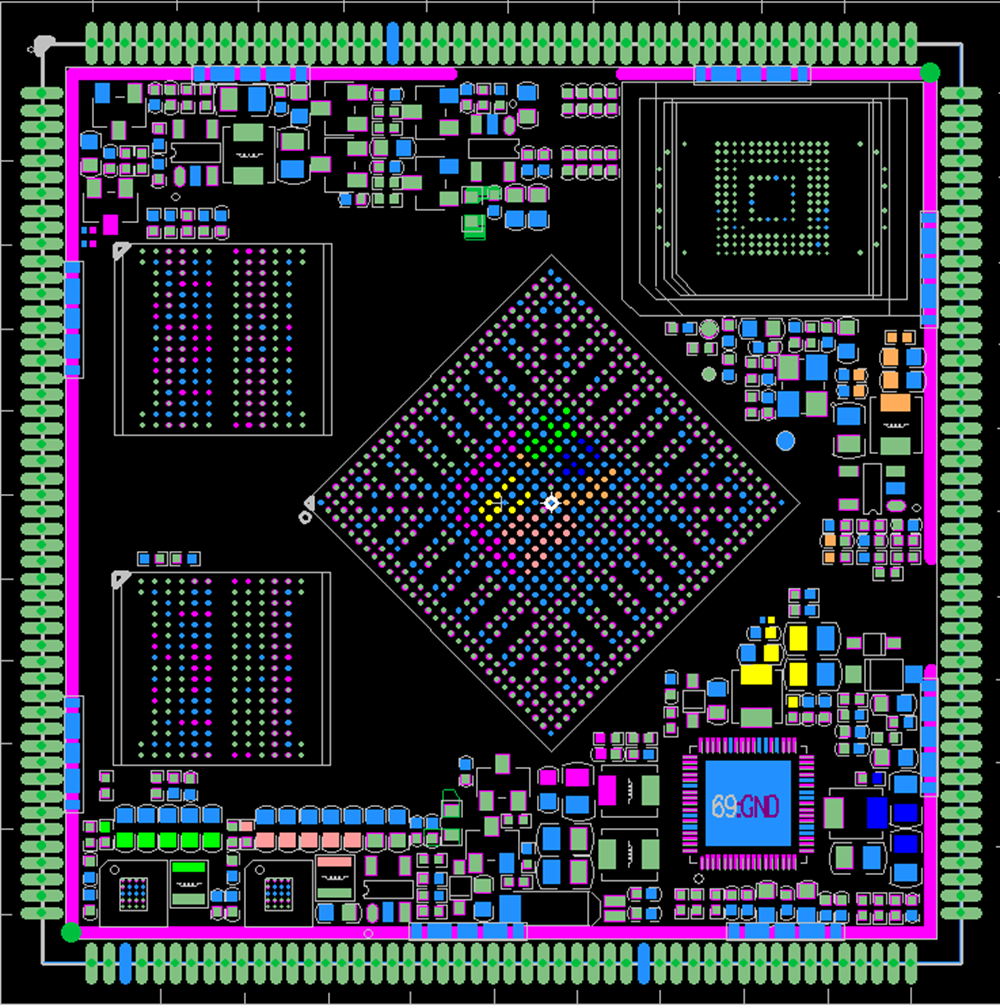

    YT-12 RK3399 High Performance PCBA Smart Screen Display Machine Board

    YT-12 is a core board based on RK3399, which is independently developed, produced and sold by Shenzhen
    YECON Technology Co., ltd. RK3399 represent the top level of domestic chip. It's a six-core high-performance
    CPU composed of four A53 cores and two A72 cores, and the main frequency is up to 2GB.

    RK3399 is a monster in terms of both CPU and GPU. The dual Cortex-A72 CPU with large cores and four Cortex
    -A53 CPU with small cores are optimized for integers, floating-point, memory, etc., providing revolutionary improv
    ement in overall performance, power consumption, and core area. GPU adopt a new generation of high-end image
    processor Mali-T860 with quad-core ARM, which integrate more bandwidth compression technology, like intelligent
    superposition, ASTC, local pixel storage, etc., and supports more graphic and computing interfaces with the overall
    performance improved by 45% compared with the previous generation.

    While these capabilities are touted as "top of the line" by the solution chip industry, The advantages of RK3399 go far
    beyond these points. What is attracting is that the three features of Type-C interface, built-in PCI-E interface and dual
    camera support gesture recognition, which will be subversive to the experience of game box products, also support
    for LPDDR4 memory and many other new features, are all ahead of the current mainstream products.

    Thanks to the high configuration and overall performance improvement, as well as the overall layout, the RK3399 is
    born to be a multi-faceted expert. In addition to tablet PC, VR, TV-box, notebook, RK3399 applications also cover a
    variety of industrial and consumer terminals, includ smart home appliance, advertising/all-in-one machine, financial
    POS machines, vehicle control terminals, thin-client computer ,VOIP video conferencing, security/surveillance/police
    and IoT Internet of Things and other fields.

    Basic Parameter

    Video output typeDigital RGB888,2 way MIPI,HDMI2.0,EDP1.1,Type-C

    Display resolution


    4096x2160 (for VOP_BIG)
    2560x1600 (for VOP_LIT)

    Sound outputAC97/IIS/PCM interface, support recording and playback
    Touch modeCapacitive touch, also support USB or serial port to extend resistive touch
    EthernetSupport Gigabit Ethernet
    TF CARD


    SDIO output channel


    USB HOST2-way USB 2.0
    USB OTG2-way OTG 3.0
    UART5-way serial port, support with flow control serial port
    PWM3-way PWM output
    IIC7-way IIC output
    SPI1-way SPI output
    ADC2-way ADC output
    Camera2-way MIPI output
    HDMIHDMI2.0,HD audio and video synchronous output
    Core PCB dimensions55mm(length)*55mm(width)* 3mm (height)
