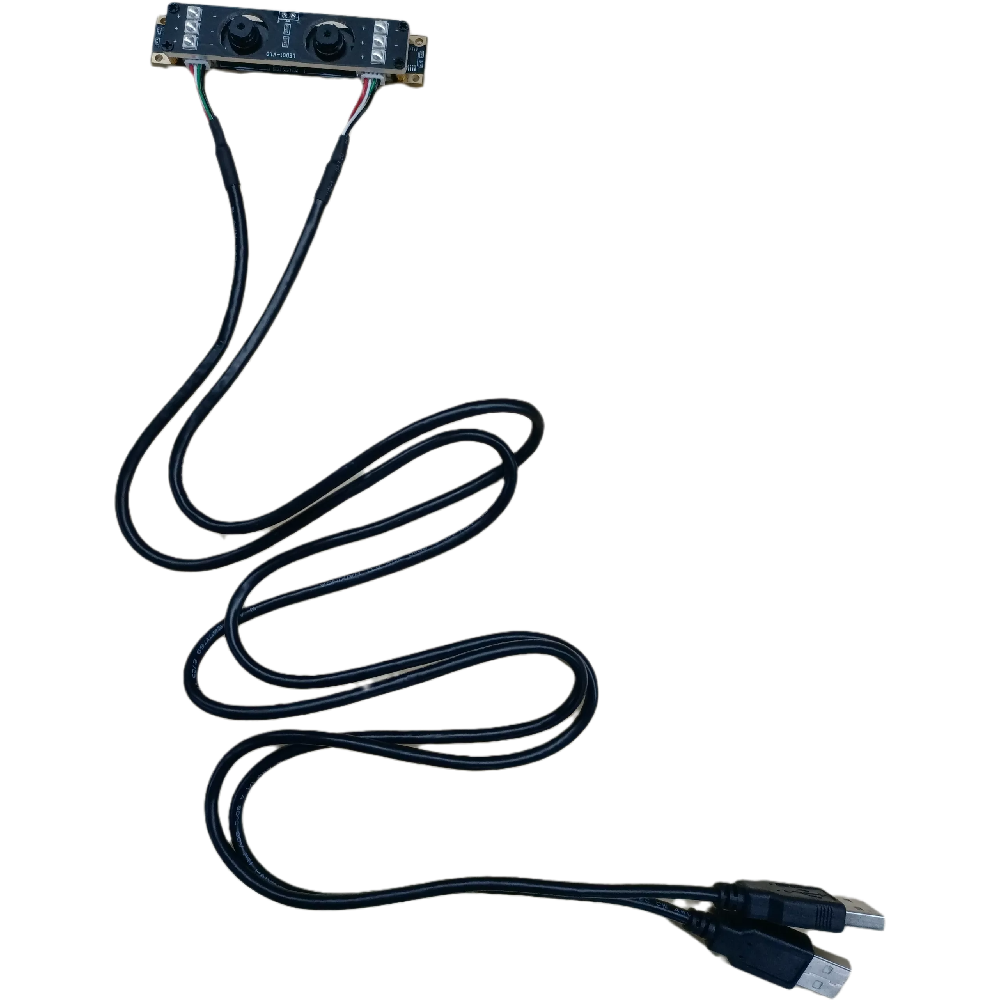

    1080P USB Binocular Camera Module 2MP Face Recognition Camera Module

    Ask Lasest Price
    Brand Name : OEM
    Model Number : YT-21
    Price : US$35-US$38
    Payment Terms : T/T
    Supply Ability : 10000PCS/WEEK
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    1080P USB Binocular Camera Module 2MP Face Recognition Camera Module

    USB Binocular Camera Module 2MP Face Recognition Camera Module


    The main features of the product:


    · 1/2.7" binocular 2 million high-definition image sensor

    ·Black and white imaging distance support 40CM-1M,

    Color imaging distance support 40CM to infinity.

    ·Fixed 30 frames, no smear

    ·Ultra low power consumption

    ·MIPI high-speed transmission


    Key Specifications:


    Module No.RS-D221S181-V5.0
    Module Size69mm ×13mm ×11.5mm±0.2 mm
    Temperature (Operation)-30°C to 85°C
    Temperature (Stable Image)0°C to 70°C
    Assembly techniqueSMT (ROSH)
    FocusFix
    Object distance45CM-200CM
    PCB printing inkblack
    interfaceUSB
    Powerpower 5V
    Operating system requestWindows 2000/XP/7/8/8.1/10, Linux, Android
    PackageAnti-electrostatic tray
    Certifications
    Sensor TypeRGBIR
    Active Array Size1920*10801920*1080
    Pixel Size3.0µm x 3.0µm3.0µm x 3.0µm
    Maximum Image Transfer Rate30fps (1920*1080)30fps (1920*1080)
    S/N Ratio49dB49dB
    Dynamic RangeUP to 100dBUP to 85dB
    PackageCSPCSP
    Lens Type
    Lens Construction650nm/850nm (band pass)
    F/No2.0
    BFL(Optical)0.7mm
    FOV80°
    HORIZONTAL69.5°
    VERTICAL42.6°
    TV Distortion<1%
    Relative Illumination (Sensor)>33.8%
    IR Filter650nm visible light/850nm+10nm
    DSP TypeTH7312
    AGC/AEC/Whiter balanceAuto
    Output FormatsRGB(YUV)IR(YUV)

    1920*1080

    1280*720

    800*600

    640*480

    1920*1080

    1280*720

    800*600

    640*480

    Fixed Pattern Noise<0.03%of VPEAK-TO-PEAK
    PackageTFBGA64
