YT-23 Motherboard pcb pcba Support Video Display Capacitive Touch Ethernet Dry node USB host USB OTG RS-485 Wegan Camer

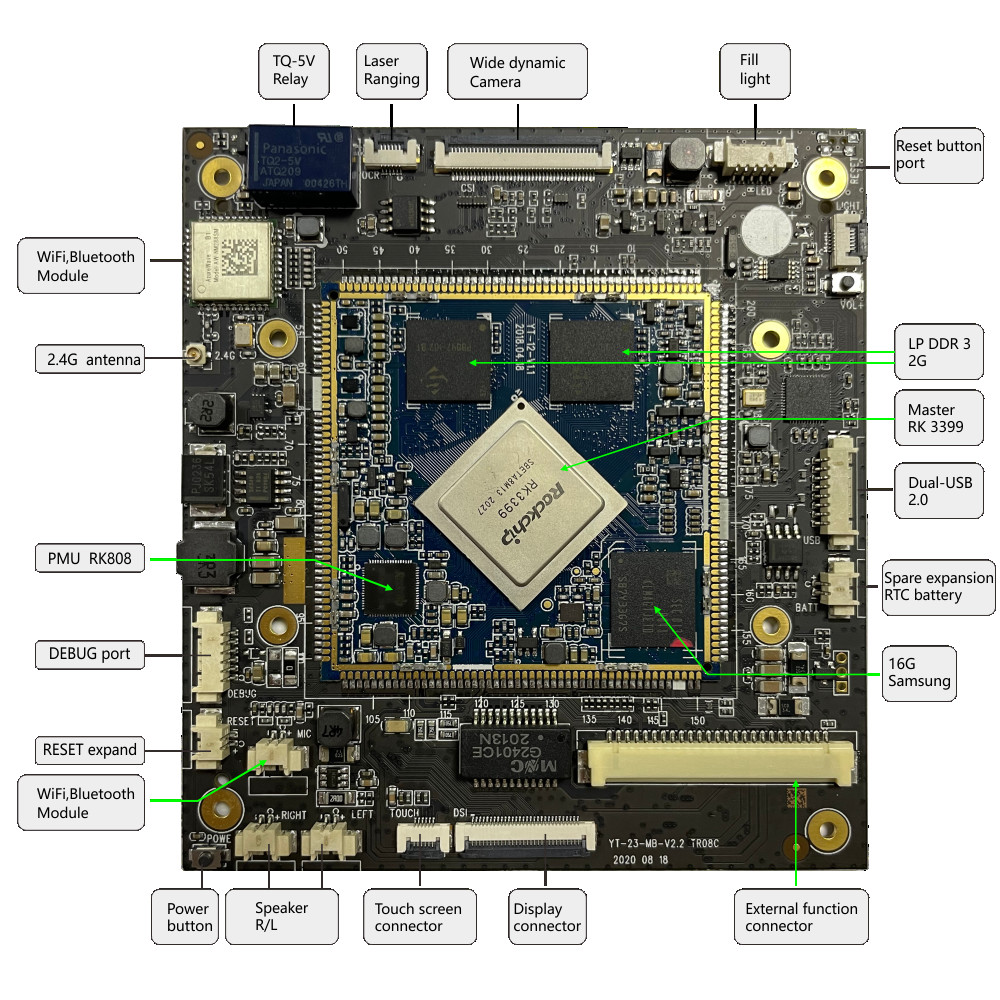

YT-23 Characteristics:

* Golden section back outlet design, waterproof grade IP67, the best size of the motherboard is only 103.5mm*95mm*4mm(not including relay height);
* Use RK's own RK808 PMU to ensure stable and reliable work, at the same time the cost is low enough;
* Support emmc of a variety of brands and capacities, the default use of Samsung 16GB emmc;
* Dual channel LPDDR3 design, support 2GB capacity by default, 4GB capacity can be customized;
* Support power dormant and wake, power down clock memory;
* Support android7.1.1 operating systems;
* Support wide dynamic binocular camera and bio-assay detection, Double 200W WDR is the best results;
* Support infrared distance measurement function;
* Support dynamic adjustment of white filling light, red indicator, green indicator;
* Supports voice microphone;
* Support multi-touch function;
* Support 2.4 G WIFI
* Support 100 MB wired Ethernet;
* Support dry node input (door magnetic state & door switch, etc.);
* Support USB2.0 interface can be freely switched ADB & Host;
* Support half-duplex RS-485 function;
* Support half-duplex 26bit, 34bit Wegan function;
* Support access control function, using Panasonic TQ2-5V relay;
* Support NFC function, IIC&UART compatible communication mode;
* The product is stable and reliable, and continuous mixed workload testing for 7 days and 7 nights without crashing;

Application: Information exchange, face recognition, binocular camera, intelligent access control, attendance and so on

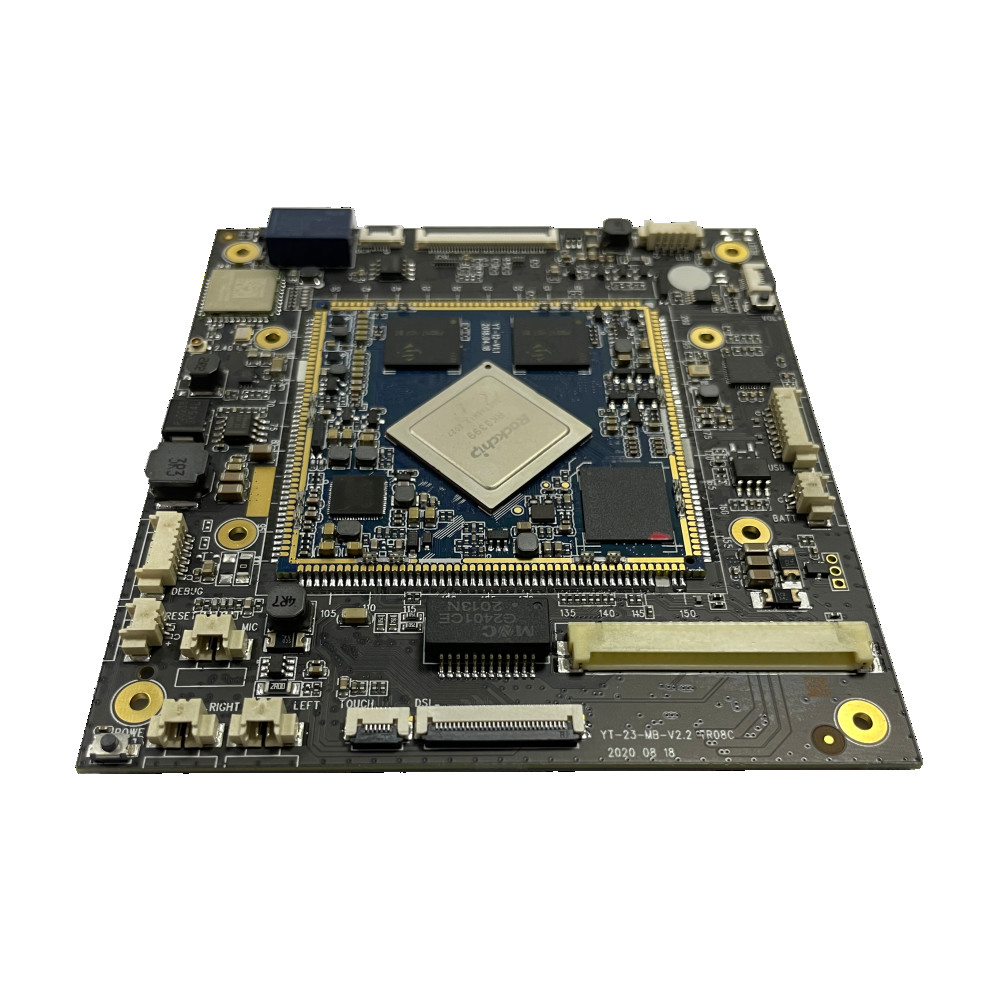

YT-23 is a core board based on RK3399, which is independently developed, produced and sold by Shenzhen YECON Technology Co., Ltd.
RK3399 represents the top level of domestic chips. It is a six-core high-performance CPU composed of four A53 cores and two A72 cores, and the main frequency is up to 2GB.
RK3399 is a monster in terms of both CPU and GPU. The dual Cortex-A72 CPU with large cores and four Cortex-A53 CPU with small cores are optimized for integers, floating-point, memory, etc., providing revolutionary improvements in overall performance, power consumption, and core area. GPU adopts a new generation of high-end image processor Mali-T860 with quad-core ARM, which integrates more bandwidth compression technologies, such as intelligent superposition, ASTC, local pixel storage, etc., and supports more graphics and computing interfaces with the overall performance improved by 45% compared with the previous generation.
While these capabilities are touted as "top of the line" by the solution chip industry, The advantages of RK3399 go far beyond these points. What is attracting is that the three features of Type-C interface, built-in PCI-E interface and dual camera support gesture recognition, which will be subversive to the experience of game box products, as well as support for LPDDR4 memory and many other new features, are all ahead of the current mainstream products.
Thanks to the high configuration and overall performance improvement, as well as the overall layout, the RK3399 is born to be a multi-faceted expert. In addition to tablet PC, VR, TV-box, notebook, RK3399 applications also cover a variety of industrial and consumer terminals, including smart home appliances, advertising/all-in-one machines, financial POS machines, vehicle control terminals, thin-client computer ,VOIP video conferencing, security/surveillance/police and IoT Internet of Things and other fields.
