Web Based Software With 8inch Touch Screen Face Recognition
Temperature Detection System
2300 workers, 45000 ㎡ non-dust workshop, 18 years experience, ISO,
CE, FCC, Rohs certificated, located in Shenzhen China, this is how
we keep good quality and competitive prices for global valued
customers.

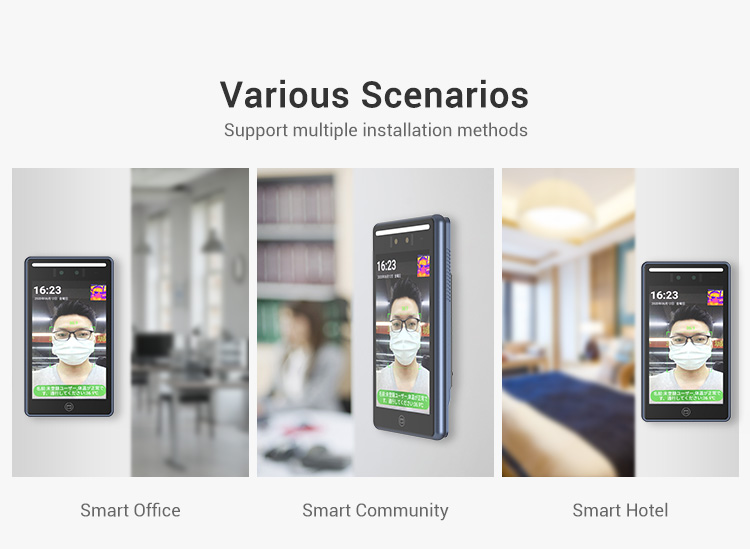

The all in one device is widely use in office, hospital, smart
building, super market, school, and so on, we have some videos for
you easy understand the operation of the products, please let me
know if you need it.
If the product meet your demand, please feel free to contact us.
We're sure your any inquiry or requirement will get prompt
attention.
| Device shell | Aluminum alloy |
| Operating system | Android7.1 |
| CUP | RK3399 six-core high-performance CPU composed of four cores of A53
and two cores of A72 |
| Memory | Standard:RAM 2GB LPDDR3 Memory:16GB EMMC |
| Temperature measuring module brand | HIKvision from China | Touch screen : | 8“ multipoint capacitive touch screen |
| measuring distance: | 0.3-2M |
| Temperature measuring resolution | 160*120 Faster speed,higher accuracy ,longer measurement Distance | Screen resolution: | 800*1280 |
| Interface | LAN | 10/100M self-adaptive |
| WLAN/WI-FI | 2.5/5GHz double-frequency WIFI 802.11 a/b/g/n |
| Bluetooth | V5.0(Standard) |
| Data interface | USB3.0*1 USB2.0*1 |
| Microphone | x1 |
| Sound | Speaker 1.5W*2 |
| Key | Reset, Recovery) |
| RS232 | RS232*1 |
| RS485 | RS485*1 |
| Wiegand interface | Support |
| GPIO interface | *2 (Alarm switch, door magnetic detection) |
| Power supply | 12V2A/POE power supply, support DC extension cord, 0.5 square line
≥100 m |
| Operating Environment | Operating temperature | 30℃ ~ 45℃ | ESD | ±4kV exposure, ±8kV air |
| Operating humidity | 20%-95% noncondensing | Lightning protection | Not support |
| Storage temperature | -30℃ ~ +80℃ | Surge | Support |
| Power consumption | Max <18w | Harmonic | Support |
| Protection grade | Whole set IP67 | Uninterrupted | 7*24 |
Identification settings
[feature comparison threshold]: it is the face recognition
accuracy, similar to the recognition score
[Live Score]: Detect whether the face is a photo or still life
[multi person recognition]: multi person recognition function,
which can recognize multiple faces.
[allow strangers to pass]: Allow strangers or visitors to pass
[Allow access by swiping card]: swipe IC card to attendance or door
access control. support 13.56mhz card which has been register in
the device
[Allow access by swiping QR code]: swipe the QR code for door
access control. the QR code generated in the server backstage.
[Allow password access]: On the face recognition page of the
device, there will be an access control lock
displayed on the right, click to enter the password,The original
password is 888888.
[Liveness detection]: judge whether the recognized face is alive,
to avoid photos attack.
[no photography allowed]: taking pictures will not be saved.
